Automatic Joint Detection

For joint detection we are using very similar technology to our Automatic Defect Detection.



The parameters are tweaked to allow us to focus solely on straight transverse and longitudinal joints.

This then allows us to map each concrete bay/joint to a GPS Coordinate and Chainage (HAPMS or Scheme). Combining all lanes together we are able to produce a web like overlay of your joints that can easily be displayed in your GIS System.

See images below for more information:

Original Image

Original Image

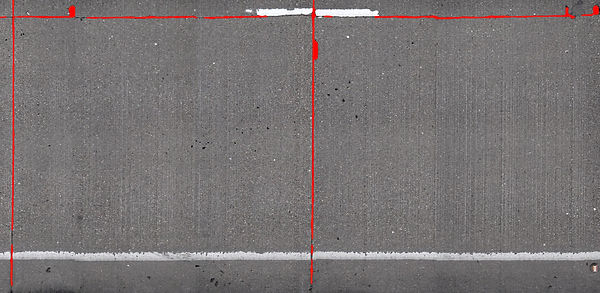

Joint Detection

Joint Detection

Joints

Joints
